Perfect for: Aero Road Bike Rider.
Tires: Designed to work with 700C*28C tire.
Cable routing: Full internal cable routing.
Disc Brake: Flat mount disc brake mount, 140mm disc rotor.
Groupset: Mechanical and Di2 groupset compatible.
Material: High modulus carbon fiber.
Item No :

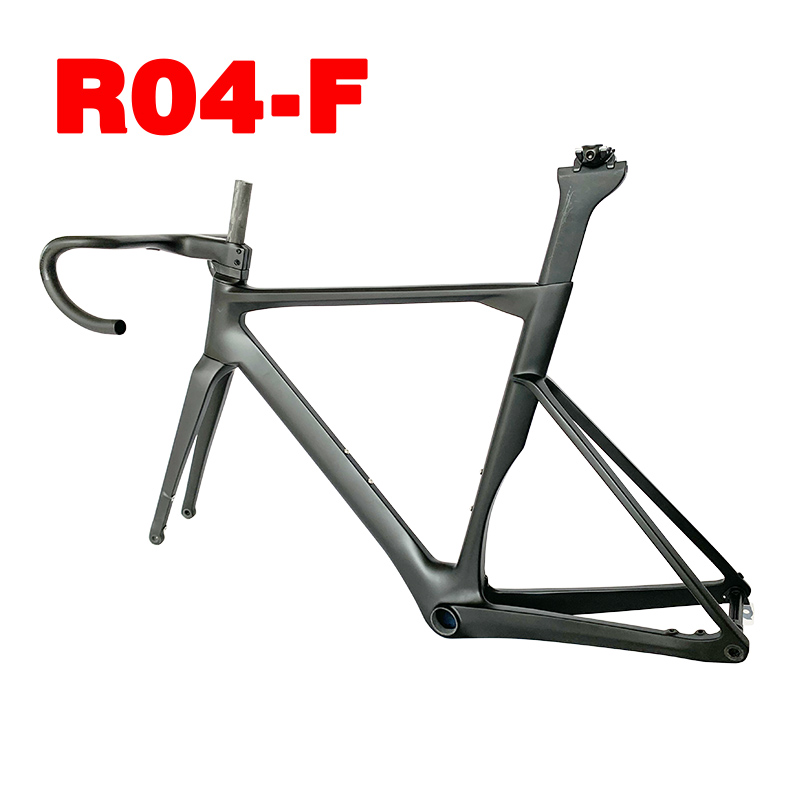

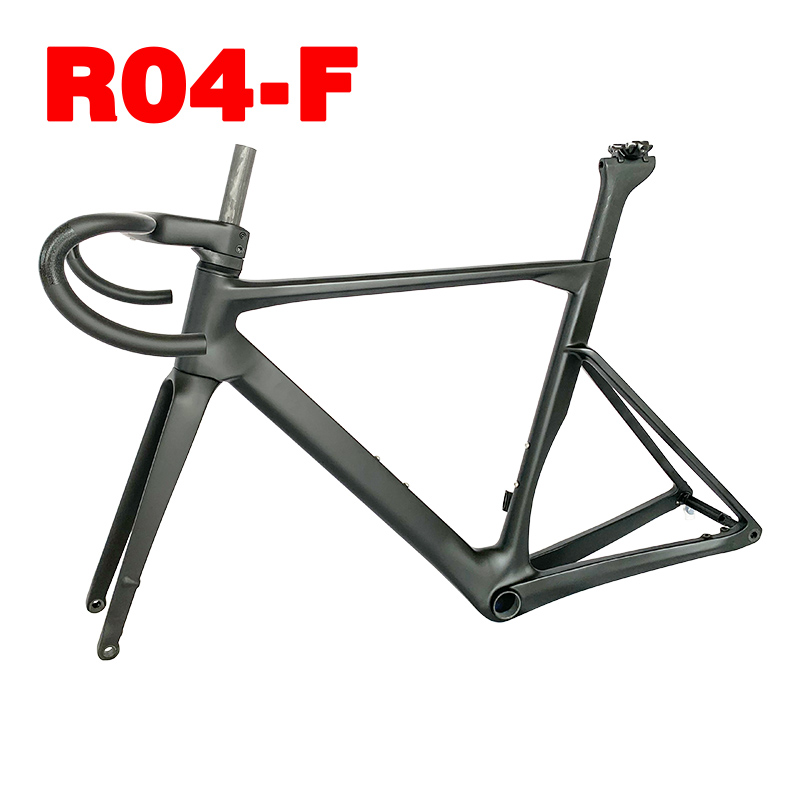

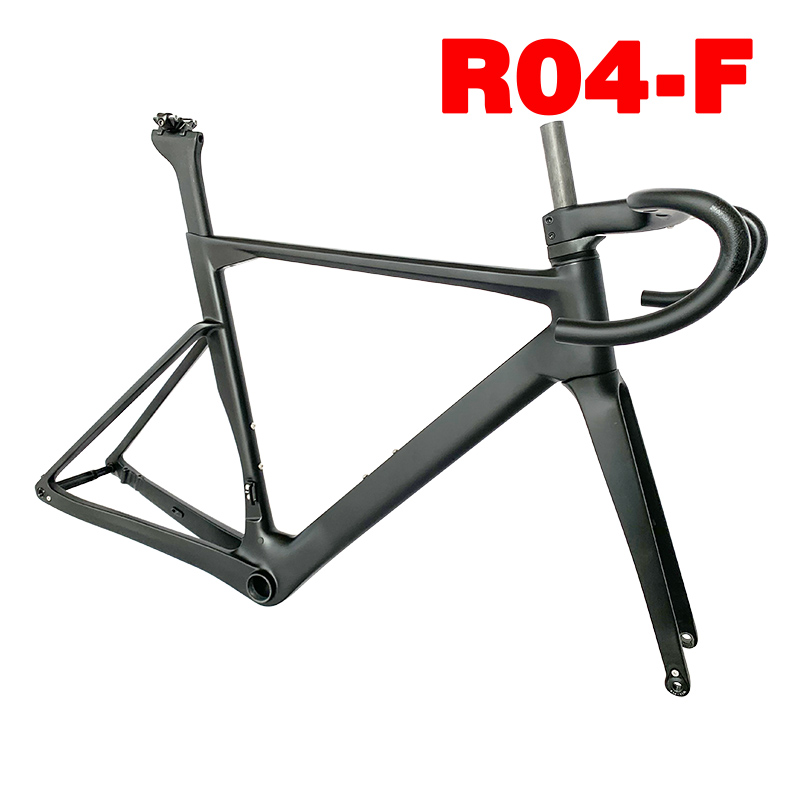

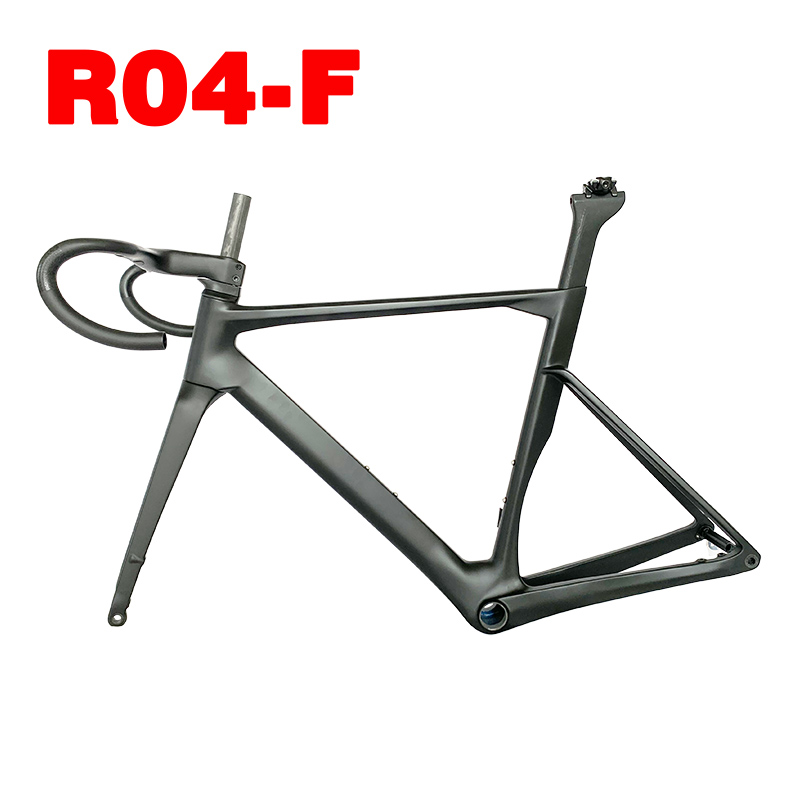

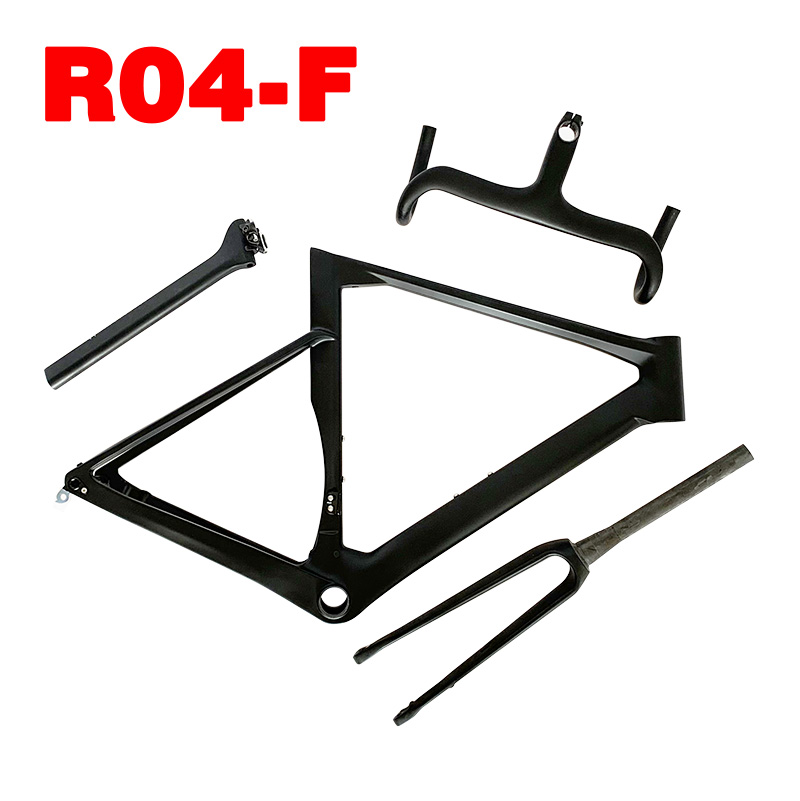

R04-FNew Aero Disc Brake Integrated Carbon Road Bike Frame

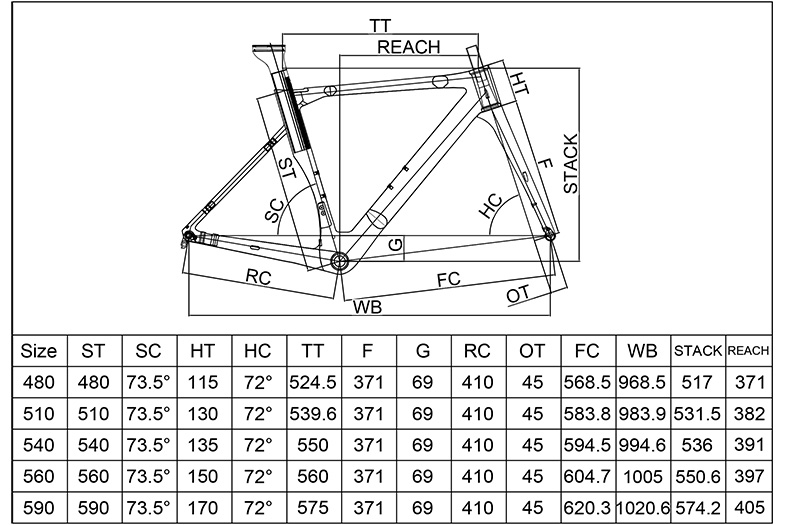

Product Specification:
| Size | 480, 510, 540, 560, 590mm |
| Fork | QTOUR specify aero carbon fork F06-F |
| Handlebar width | 400/420/440mm |
| Stem | 90/100/110/120mm |
| Headtube | Straight 1 1/2" head tube |
| Weight | 1150g±50g (540mm) |
| Seatpost | Specify Setback Adjustable Seatpost P04 |
| Bottom bracket | PressFit BB86 |
| Max tire clearance | 700*28C |
| Brake mount type | Flat mount Disc brake 140mm |
| Dropout | Front φ12*100mm Thru Axle, Rear φ12*142mm Thru Axle |
| Groupset | Recommended install electronic shifting groupset(Not compatible with old rear derailleur without B-LINK, eg old 105 5800) |
| Handlebar&stem | HR03 |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
