Perfect for: Road Bike Rider.
Tires: Designed to work with 700C*28C tire.
Cable routing: Compatible Full internal cable routing.
Disc Brake: Flat mount disc brake mount, 140mm disc rotor.
Groupset: Mechanical and Di2 groupset compatible.
Material: High modulus carbon fiber.
Item No :

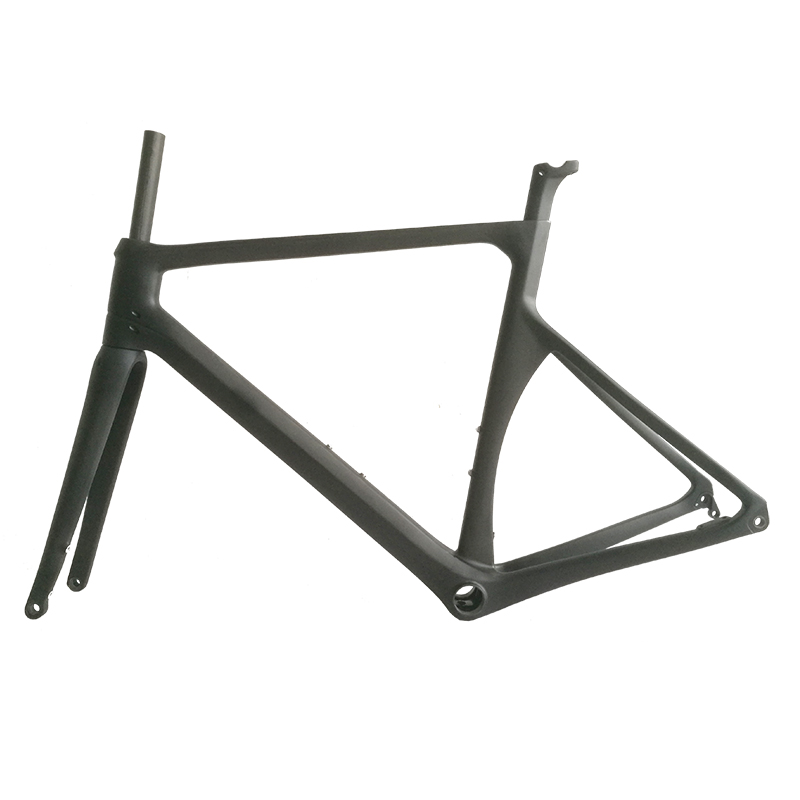

R02-FAero Carbon Road Disc Brake Frame

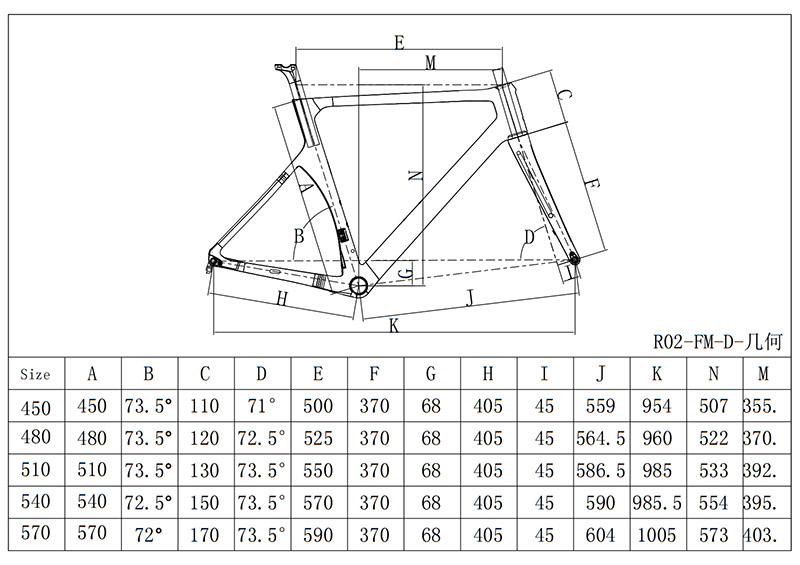

Product Specification:
| Size | 450, 480, 510, 540, 570mm |
| Fork | QTOUR specify aero carbon fork F03-F |
| Handlebar width | 400/420/440mm |
| Stem | 90/100/110/120mm |
| Headtube | Straight 1 1/2" head tube or Tapered 1 1/8-1 1/2'' Head Tube |
| Weight | 10650g (480mm) |
| Seatpost | Specify Aero Seatpost P02 |
| Bottom bracket | PressFit BB86 |
| Max tire clearance | 700*28C |
| Brake mount type | Flat mount Disc brake 140mm |
| Dropout | Front 12*100mm Thru Axle, Rear 12*142mm Thru Axle |
| Groupset | Recommended install electronic shifting groupset(Not compatible with old rear derailleur without B-LINK, eg old 105 5800) |
| Handlebar&stem | HR03 |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
