Perfect for: Capliper Brake Road Bike Rider.
Tires: Designed to work with 700C*28C tire.
Cable routing: Full internal cable routing.
Brake: Caliper Brake.
Groupset: Mechanical and Di2 groupset compatible.
Material: Carbon Fiber
Item No :

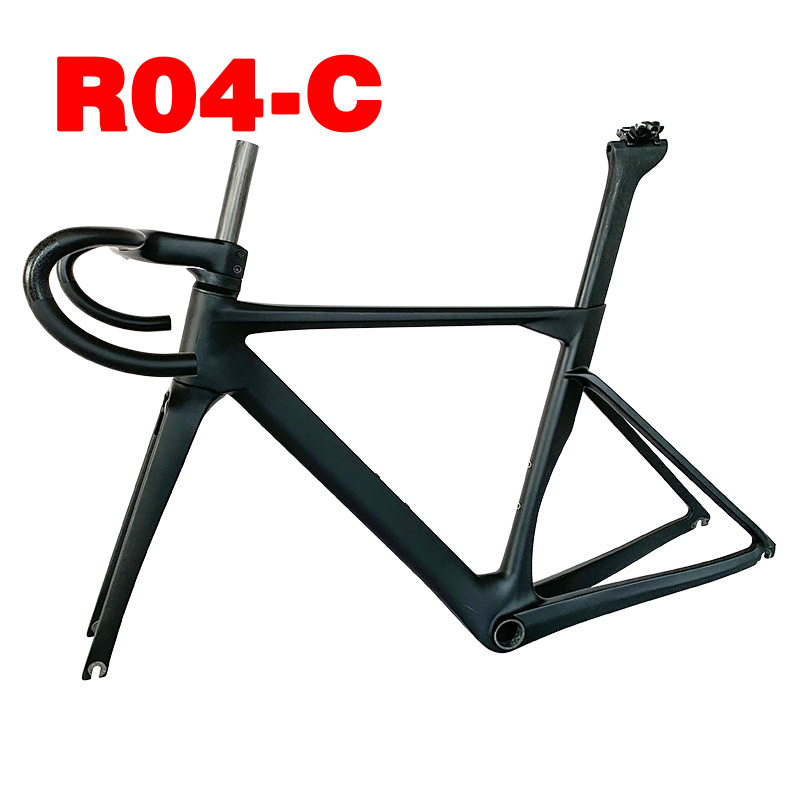

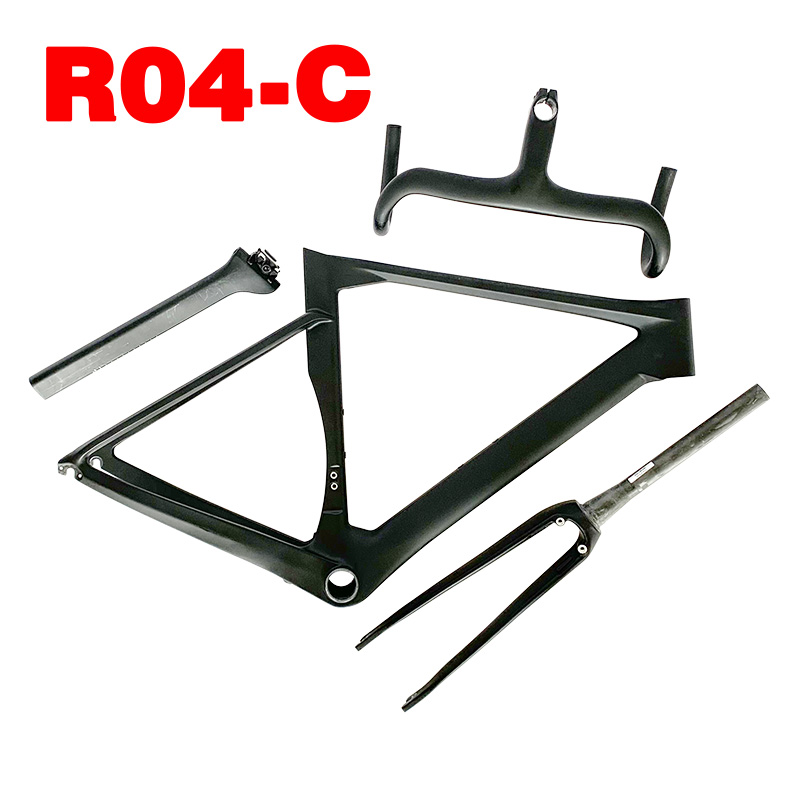

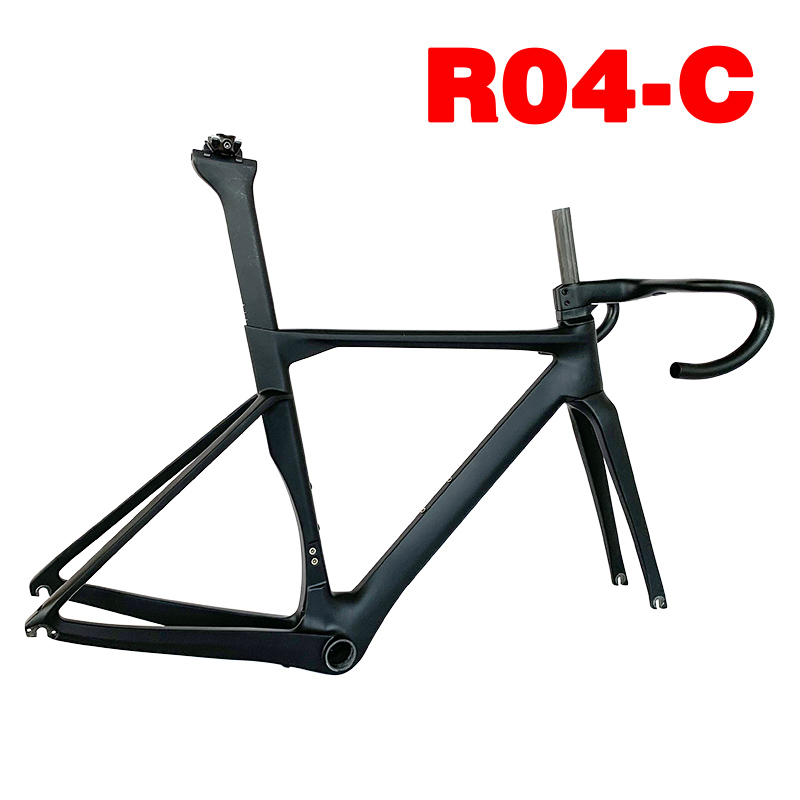

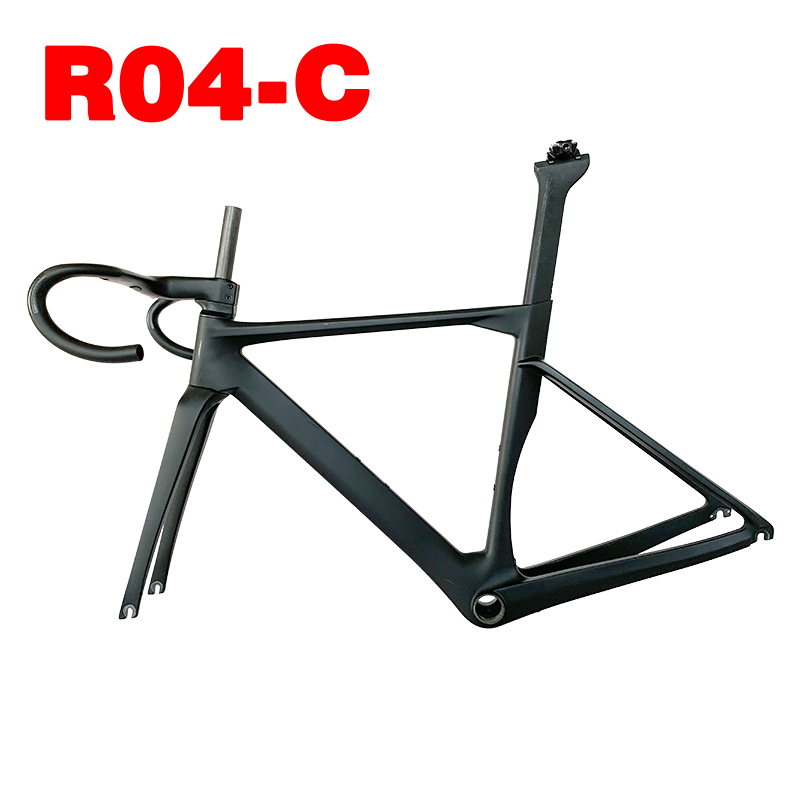

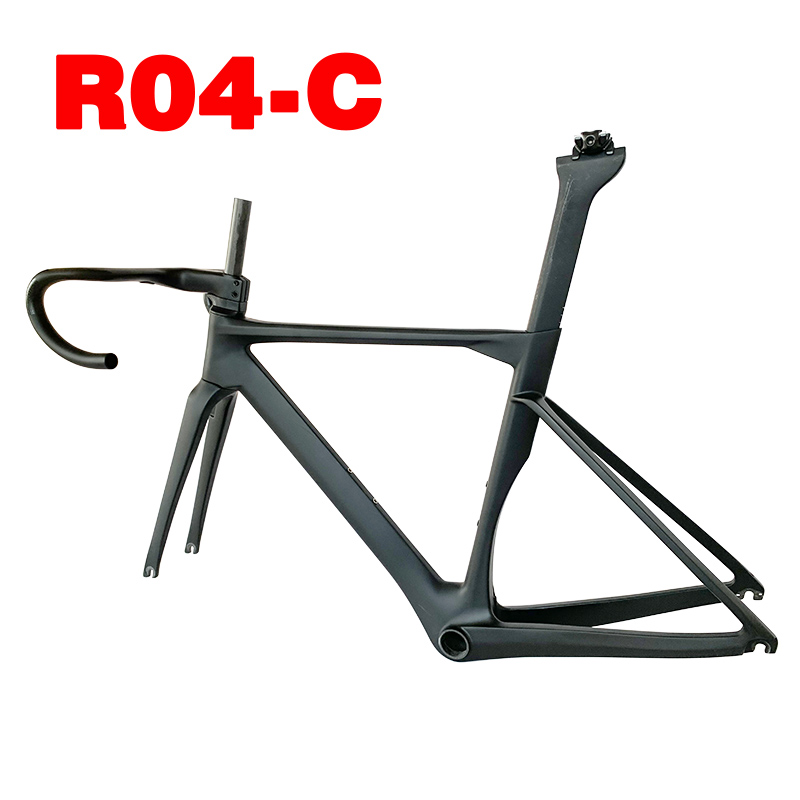

R04-CNew Caliper Brake Intrgrated Road Bike Carbon Frame
Product Specification:
| Frame | New Caliper Brake Intrgrated Road Bike Carbon Frame |
| Material | Carbon Fiber |
| Size | 480, 510, 540, 560, 590mm |
| Fork | QTOUR specify aero carbon fork F06-C |
| Handlebar | 400/420/440mm |
| Stem | 90/100/110/120mm |
| Headtube | Straight 1 1/2" head tube |
| Weight | 1080g (540mm) |
| Seatpost | Specify Setback Adjustable Seatpost P04 |
| Bottom Bracket | PressFit BB86 |
| Max Tire Clearance | 700C*28C |
| Brake Mount Type | Caliper Brake (Direct Mount) |
| Dropout | Front 9*100mm (QR), Rear 10*130mm (QR) |
| Integrated Handlebar | Recommended install electronic shifting groupset(Not compatible with old rear derailleur without B-LINK, eg old 105 5800) |
| Test Standard | ISO4210 |
| Warranty | 2 Years |
